Description

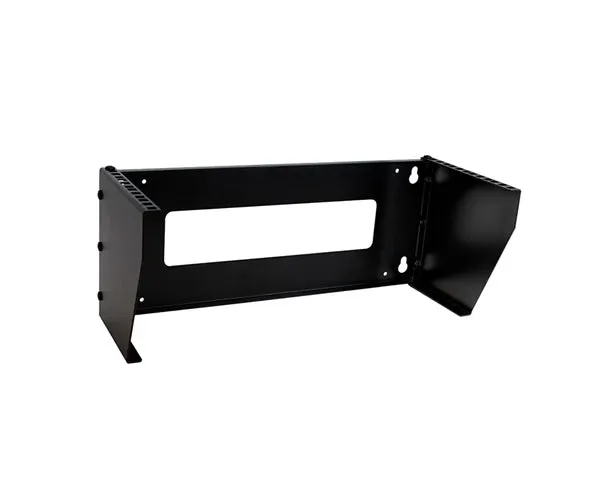

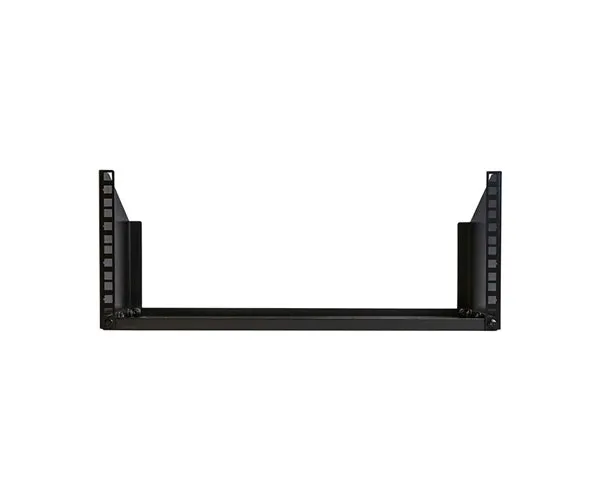

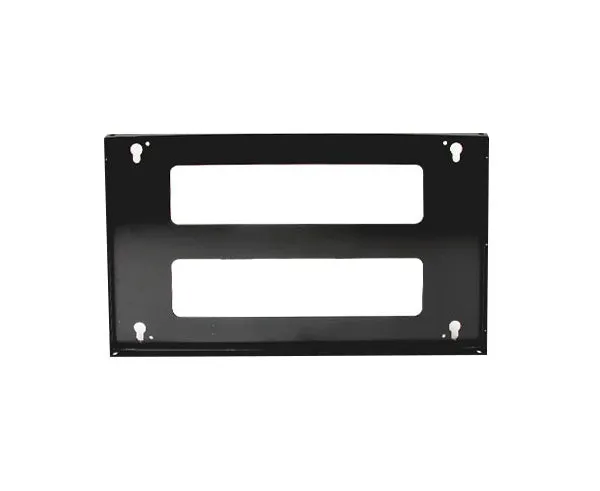

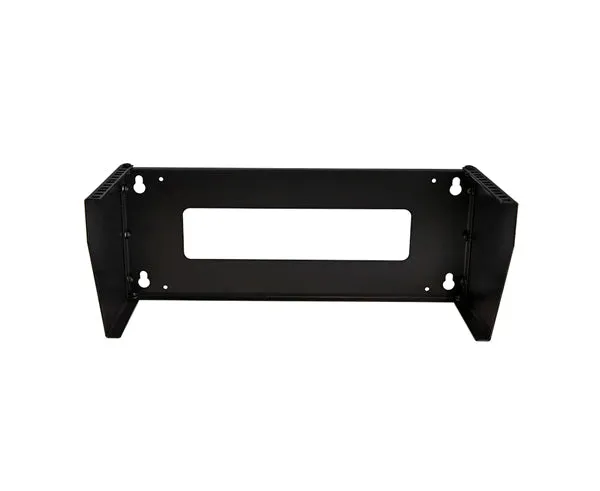

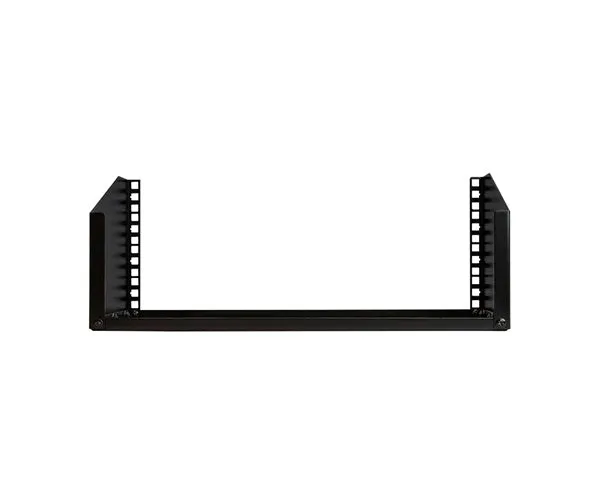

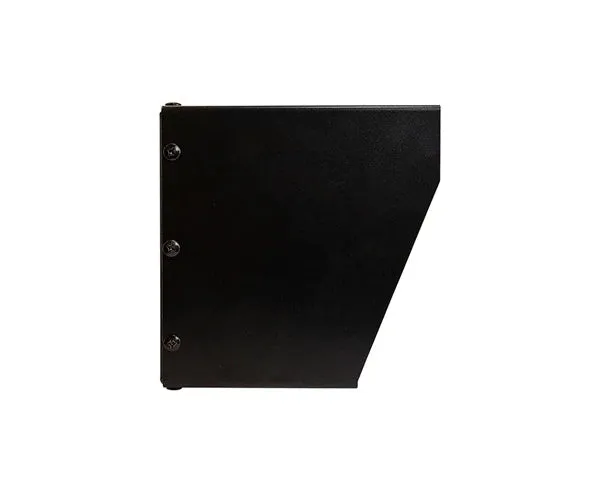

Vertical Wall Mount Bracket
Vertical Wall Mount Brackets allow servers and other networking equipment to mount vertically and flush to a wall, providing a cost-effective mounting solution for environments with limited space. Featuring universal cage hole mounting and an opening in the rear panel for in-wall cable access, this bracket has the versatility to support a wide variety of equipment regardless of depth. Load capacity of 75 lbs.
Specifications
Specifications
|
Size |
2U |
|
Width |
19.23" |
|
Depth |
4.20" |
|
Height |
7.80" |
|
Weight |
5.35 lbs |
|
Loading Capacity |
75 lbs. |
|
Material(s) |
14 Gauge CRS (Cold Rolled Steel) |
|
Color/Finish |
Black Powder Coated Finish |
|
Size |
4U |
|
Width |
19.23" |
|
Depth |
7.70" |
|
Height |
7.80" |
|
Weight |
6.75 lbs |
|
Loading Capacity |
75 lbs. |
|
Material(s) |
14 Gauge CRS (Cold Rolled Steel) |
|
Color/Finish |
Black Powder Coated Finish |
|
Size |
6U |
|
Width |
19.23" |
|
Depth |
11.20" |
|
Height |
7.80" |
|
Weight |
10.70 lbs |
|
Loading Capacity |
75 lbs. |
|
Material(s) |
14 Gauge CRS (Cold Rolled Steel) |
|
Color/Finish |
Black Powder Coated Finish |
What's in the Box?
What's in the Box?

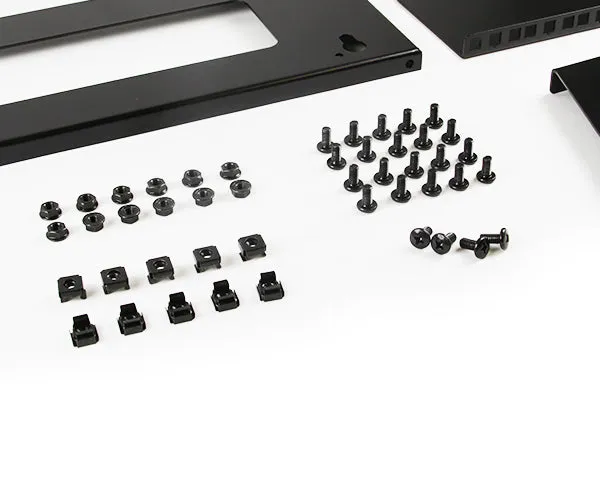

- Qty 1 - Vertical Wall Mount Bracket
- Qty 10 - M6 Cage Nuts And Screws Included
