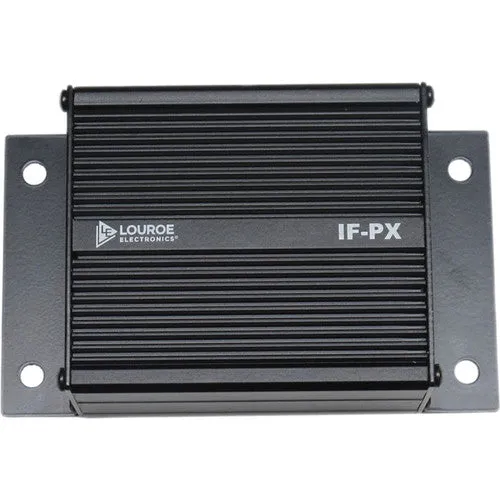

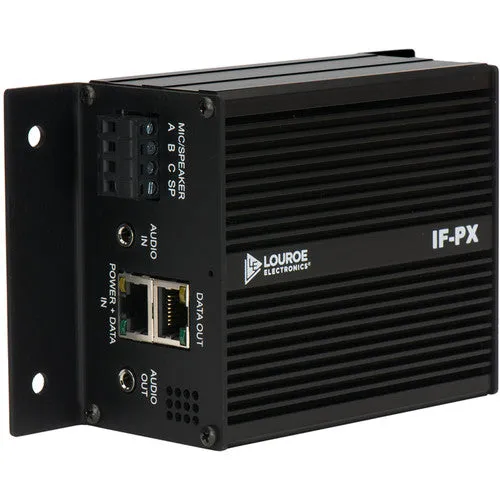

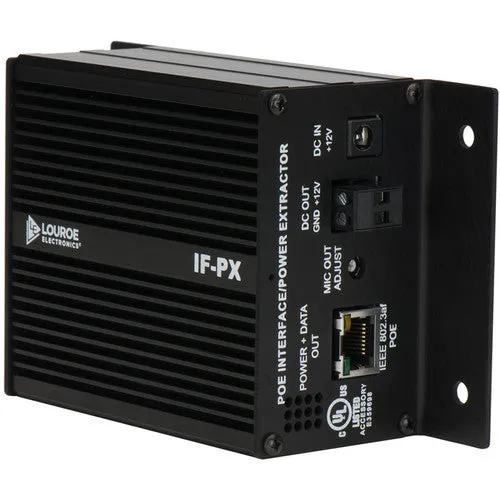

Louroe Audio Interface PoE Extractor IF-PX is an audio-oriented, single zone power over Ethernet extractor that extracts power from an ethernet connection to power Louroe’s one-way or two-way audio solutions. The IF-PX interfaces with Louroe speakerphones, microphones and other external devices that require a 12 Vdc supply such as system accessories and non-PoE cameras. The IF-PX also permits audio and video equipment to be powered by a single run of CAT5, CAT5e or CAT6 cable. The IF-PX enhances the functionality of audio security systems by eliminating the need for a power supply. It also provides seamless installation with 15W PoE (802.3af) standard and easy integration with IP cameras.

Single zone power over Ethernet extractor
Supports mode A and B power options IEEE (802.3af)
12 Vdc power output for external equipment
Variable gain audio output potentiometer
Audio in/out for IP cameras
Thermal overload protection
Short circuit protection
Data only RJ-45 output jack

Dimensions:

6″ L x 3.5″ W x 2.125″ H
