Details

In-Wall Subwoofer System with Single 8-inch Subwoofer Driver, 300 watts

Born from the same groundbreaking technologies used to develop free-standing powered subwoofers, the Fathom® IWS in-wall subwoofer systems deliver remarkable bass performance, while remaining largely concealed within most home audio/theater environments.

The 8-inch Fathom® IWS systems are smaller and easier to integrate than the larger in-wall Fathoms, fitting in all standard, 16-inch, on-center stud openings, and operating through very small grilles. These grilles accommodate all common drywall thicknesses, and can be easily painted to match the wall.

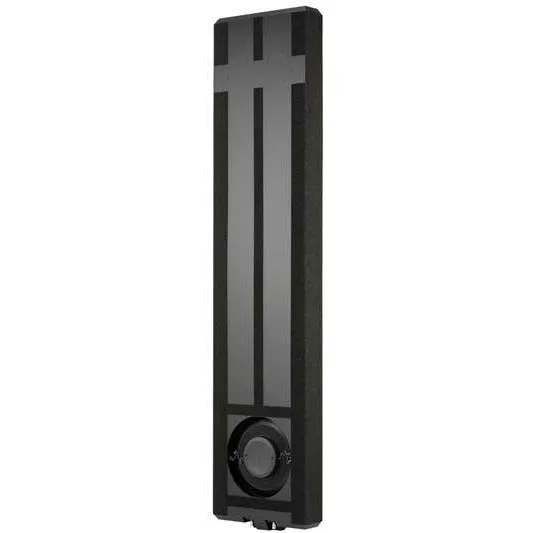

The subwoofer enclosures utilize extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness. A unique port design vents through a slot located at the perimeter of the driver mount to enhance efficiency and low-bass output. Inside the enclosure is a long-excursion, 8-inch thin-line woofer, built to exacting standards by JL Audio for the Fathom® IWS products.

Each 8-inch Fathom® IWS system is powered by a rack-mountable amplifier, capable of generating up to 600 watts of clean power and can drive up to two enclosures. A complete set of Fathom® signal processing features is also onboard, including our powerful, 18-band Digital Automatic Room Optimization (D.A.R.O.) system, all managed via an easy-to-use, menu-driven interface and LCD display. Note: D.A.R.O. functionality requires optional calibration microphone (sold separately).

The IWS-108 System fits 2" x 4" wall studs or larger. Contact us for specific application information.

Enclosure Finish: Flat Black (hidden from view when installed)

Grille finish: Primer White (paintable)

Enclosure Construction: CNC-Cut Birch Plywood

Specifications

General

Enclosure Type: Ported
Enclosure Finish: Black Texture-Coated
Frequency Response (Anechoic): 24.9 Hz - 109 Hz (± 1.5 dB) -3dB at 24.6 Hz / 111 Hz -10dB at 23.4 Hz / 118 Hz
Effective Piston Area (Sd): 31.62 sq in / 0.0204 sq m
Effective Displacement: 47.5 cu in / 0.78 L
Amplifier Power: 300 W RMS short-term
Power Mode(s): Off, On or Automatic (Signal-Sensing or 12V Trigger)
12V Trigger Output Capacity: 150 mA (1/8-inch/3.5mm mini jack)
Light Modes: N/A

2 x 4 inch wall stud enclosure

Wall Cavity Width (W): Minimum: 14.375 in / 365 mm Maximum: 15.500 in / 394 mm
Wall Cavity Height (H): Minimum: 75 in / 1,905 mm
Width (W): 14 in / 355 mm
Height (H): 61.26 in / 1,565 mm
Depth (D): 3.25 in / 83 mm
Note:  Enclosure dimensions do not include L-brackets or vibration-dampening padding.
